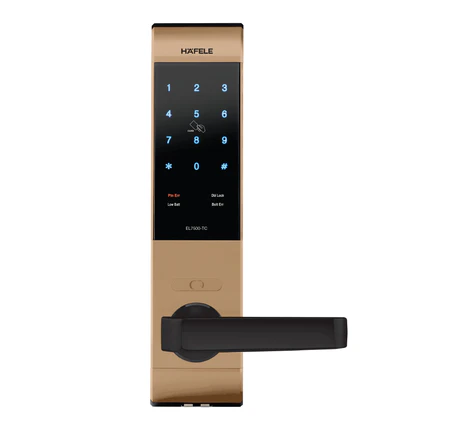

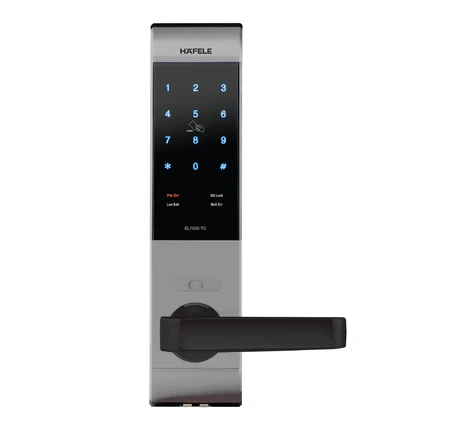

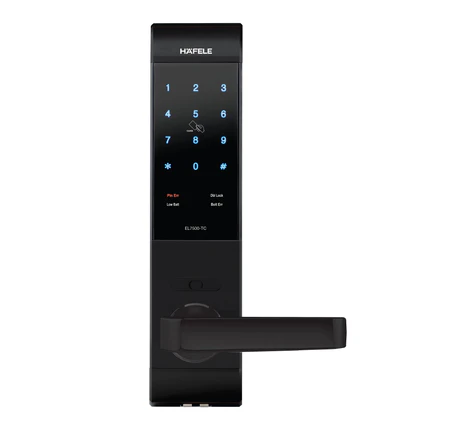

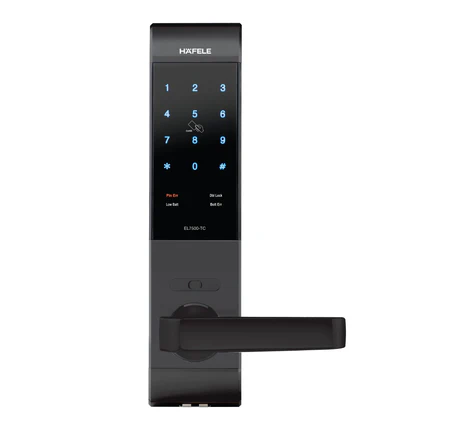

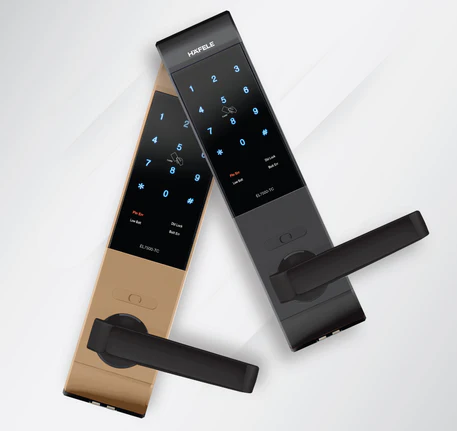

Hafele EL7500‑TC Electronic Lock (Batteries Not Included)

Technical Specifications

Storage Capacity:

• RFID cards: up to 50 cards
• Passwords: 1 master PIN, 1 user PIN
• Remote controls: up to 15

Operating Temperature:
-25 °C to +60 °C

Power Supply:

• 6V (8 AA 1.5V alkaline batteries)
• Emergency power: 9V alkaline battery

Door Type:
Wooden doors

Door Gap:
Minimum 3 mm

Door Thickness:
38–90 mm

Door Stile Width:
120 mm

Mechanical Key:
Included

Materials:
Aluminum, zinc alloy, ABS plastic, triple-layer metal coating

Dimensions (W × D × H):

• Exterior body: 73.5 × 25.5 × 302.5 mm
• Interior body: 78.5 × 35 × 310.5 mm

Product Features:

• Management via master and user PIN codes
• Random security code function to prevent PIN copying
• Double locking from outside or inside for enhanced security
• Low battery audible alert
• Adjustable lock volume
• Integrated fire detection sensor: automatically unlocks if interior temperature exceeds 60 °C
• Electric shock protection
• Auto-lock function when the door remains closed after unlocking
• Tamper alarm if strong force is applied to the exterior body
• Auto-disable for 1 minute after 5 consecutive failed attempts (PIN/card/fingerprint)
• Alert if the door is not fully closed
• Flexible switching between automatic and manual locking modes

Set Includes:

• 1 exterior lock body
• 1 interior lock body
• 1 strike plate
• Mounting screws
• User manual
• Installation guide
• 2 large RFID cards (85 × 54 mm)
• 2 small RFID cards (35 × 25 mm)
• 3 mechanical keys
